ReliZyme™ and SEPABEADS™ EC are composed by a rigid methacrylic polymer matrix with different posity degrees:

SEPABEADS™ EC - Average pore diameter: 10 ÷ 20 nm
ReliZyme™ - Average pore diameter: 40 ÷ 60 nm

• High physical and chemical stability;
• Low swelling tendency in high molar solution and in common solvents;
• Outstanding mechano-osmotic resistance given by intense crosslinking.

	Particle size range (µm)
	S grade	M grade
ReliZyme™	100 — 300	200 — 500
SEPABEADS™ EC	100 — 300	200 — 500

---

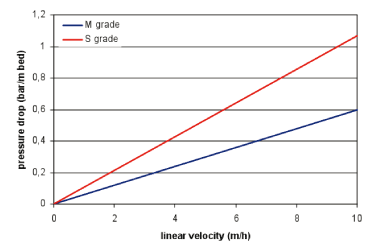

Pressure drop in water at 25 °C

Thanks to the perfect spherical form of SEPABEADS™ EC and ReliZyme™ and to the narrow particle size distribution range, the pressure drop produced by a resin bed is very low, as shown in the graph. This property confers excellent filtration characteristics in CSTR (Continuous Stirred-Tank Reactor).

---

Products line

ReliZyme™	Functional Group	SEPABEADS™
EP113 EP403	Epoxy	EC-EP
HFA403	Amino-Epoxy	EC-HFA
EA113 EA403	Ethylamino	EC-EA
HA113 HA403	Hexamethylamino	EC-HA
QA403		EC-QA
HG403	1.2 Diol	EC-HG
BU403	Butyl	EC-BU
OC403		EC-OC
OD403	Octadecyl	EC-OD
